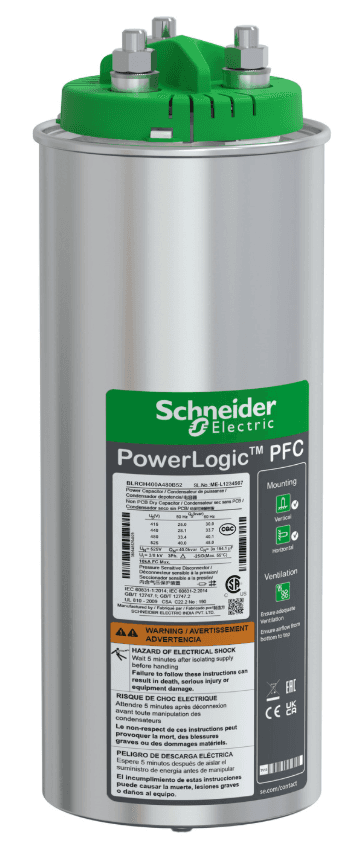

Schneider Electric BLRCH400A480B52
The Schneider Electric BLRCH400A480B52 is a VarPlusCan HDuty PowerLogic PFC heavy duty power capacitor, part of the Schneider Electric General Automation range. It offers a 525 V AC supply, a 50 Hz supply frequency and IP00 protection.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for BLRCH400A480B52
| Product family | POWERLOGIC |
|---|---|
| Supply voltage | 525 V AC |
| Degree of protection | IP00 |
| Frequency | 50 Hz |
Description
VarPlusCan HDuty PowerLogic PFC heavy duty power capacitor, three phase. Reactive power 40 kVAr 50 Hz / 48 kVAr 60 Hz . Rated voltage 525 V AC. Dielectric metallized polypropylene film with Zn/Al alloy. Impregnation non PCB dry polyurethane PUR resin. Capacitance tolerance 5 to 10 . Dielectric losses 0.2 W/kVAr power losses 0.5 W/kVAr. Continuous overcurrent capability 1.8 In inrush current up to 250 In. Maximum switching operations per year 7000. Service life approximately 130000 hours. Mounting vertical or horizontal terminal type screw/stud protection class IP00.
Repairs
We repair and refurbish Schneider Electric General Automation units in-house with bench testing and a warranty on every repair. Start a repair.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
