Schneider Electric

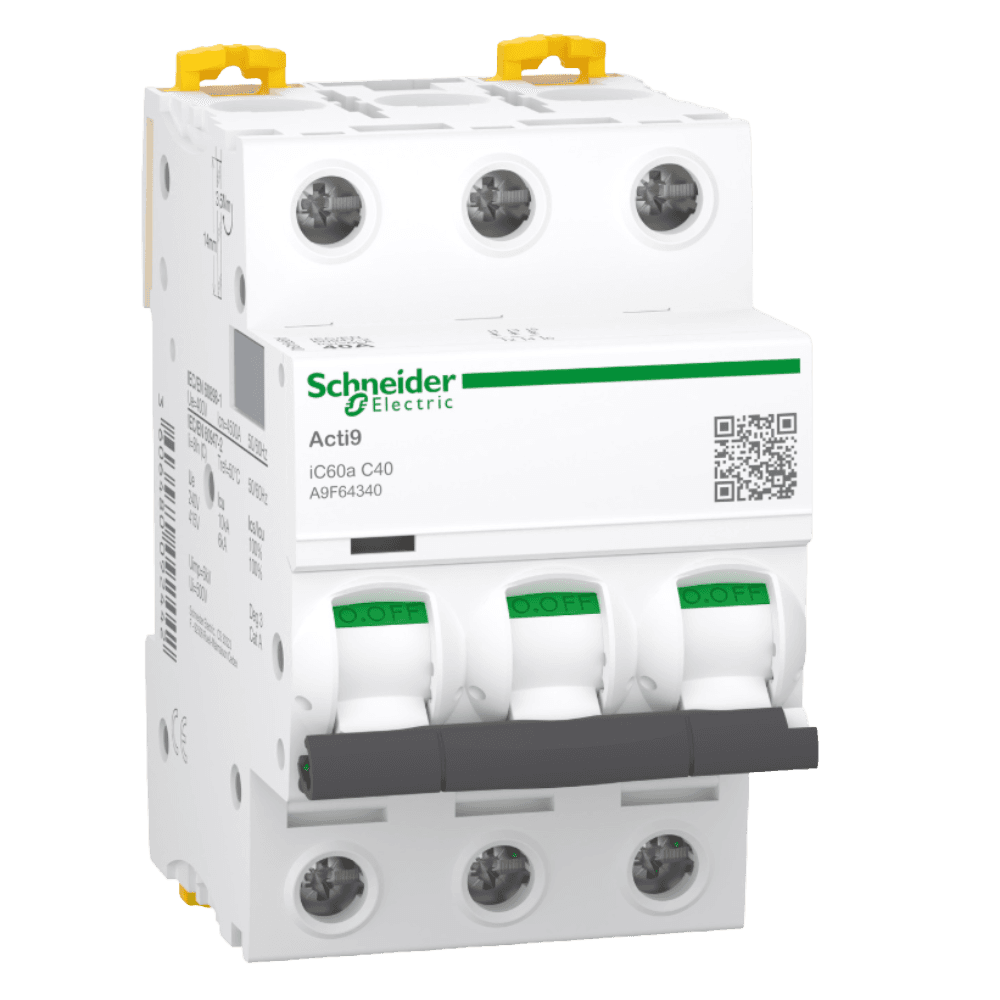

Schneider Electric A9F64340
The Schneider Electric A9F64340 is a Miniature circuit breaker, part of the Schneider Electric Drives – Motors – Circuits Protection range. It offers 400 V rated, 40 A rated current, 3 poles and IP20 protection.
$101.82 incl. 5% VAT for UAE delivery
Prices exclude VAT. 5% VAT is added at checkout for UAE delivery.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for A9F64340
| Rated current | 40 A |
|---|---|
| Rated voltage | 400 V |
| Degree of protection | IP20 |
| Mounting | DIN rail |
| Number of poles | 3 |
Description
Miniature circuit breaker, 3 pole, rated current 40 A, tripping characteristic C. Breaking capacity Icn 4.5 kA IEC 60898 1 and Icu 6 kA IEC 60947 2 at 400 V. Rated insulation voltage Ui 500 V. Width 54 mm 3 modular units , depth 78.5 mm, height 85 mm. Connectable conductor cross sections solid 1 35 mm , flexible 1 25 mm . IP20 protection, operating temperature 35 C to 70 C. DIN rail mounting features trip/position indication VisiTrip/VisiSafe and options for auxiliaries and remote indication.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
