Product image is representative; revision or series may vary. Contact us to request a specific version.
Festo

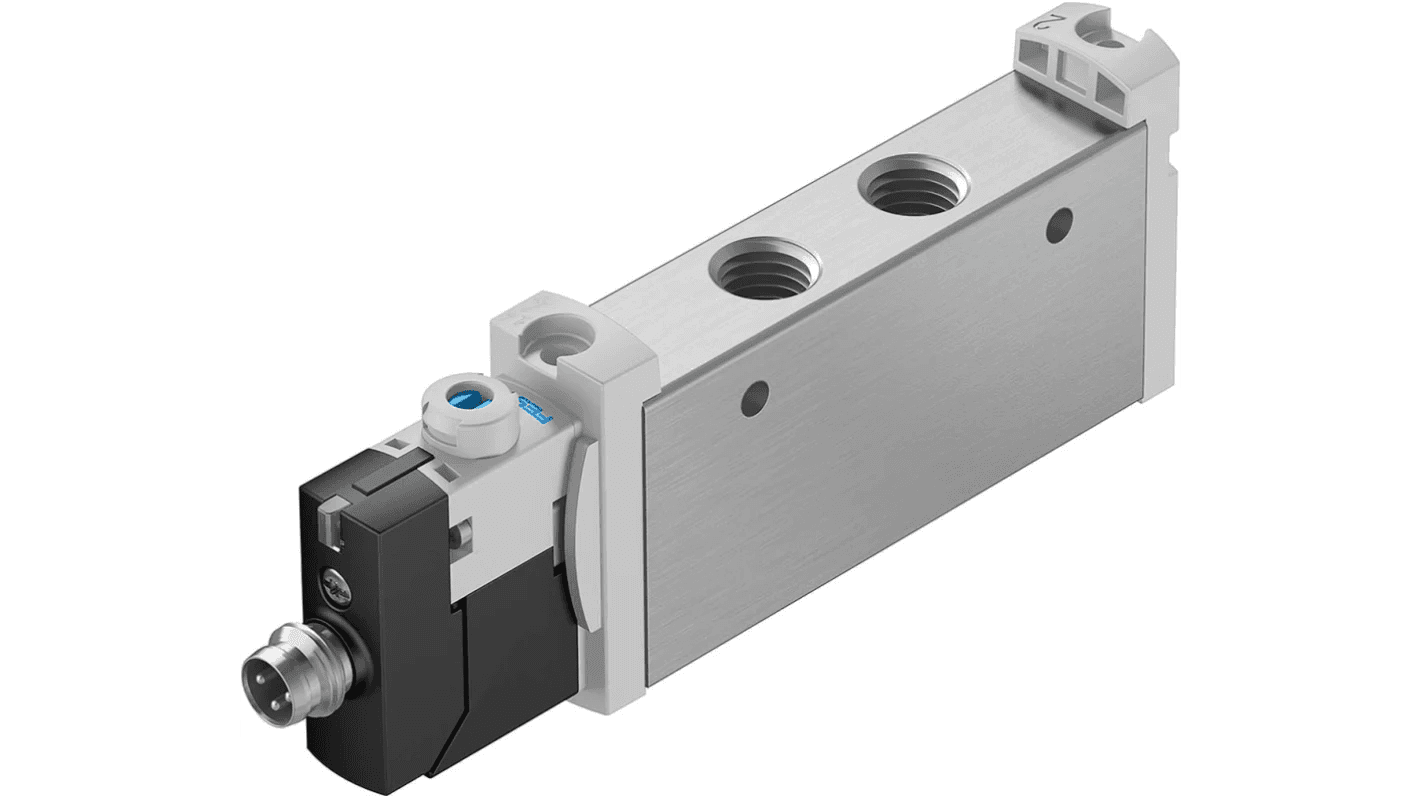

Festo 577968 VUVG-L14-M52-AT-Q6-U-1R8L
The Festo 577968 is a Solenoid valve. It offers a 24 V DC supply, IP65 protection and an ambient range of -5 to +60 °C. CMP Automate supplies the 577968 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 577968 VUVG-L14-M52-AT-Q6-U-1R8L
| Supply voltage | 24 V DC |
|---|---|
| Degree of protection | IP65 |
| Ambient temperature | -5 to +60 °C |
Description
Solenoid valve, Valve Function: 5/2 way, monostable., Drive Type: Electric, with solenoid., Valve Size: 14 mm., Operating Voltage: 24 V DC., Nominal flow rate: between 680 and 730 l/min., Working pressure: 2.5 to 8 bar (0.25 to 0.8 MPa)., Pneumatic connection: via electric insole. The working doors are G1/8., Degree of protection: IP65, with socket., Design: Piston gate valve., Reset Type: Air spring., Operating fluid: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Lubricated operation is also possible., Temperature Range: -5 to 60 °C (ambient and fluid temperature)., Manual Actuator: Present, with lock option and without lock.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
