Product image is representative; revision or series may vary. Contact us to request a specific version.
Festo

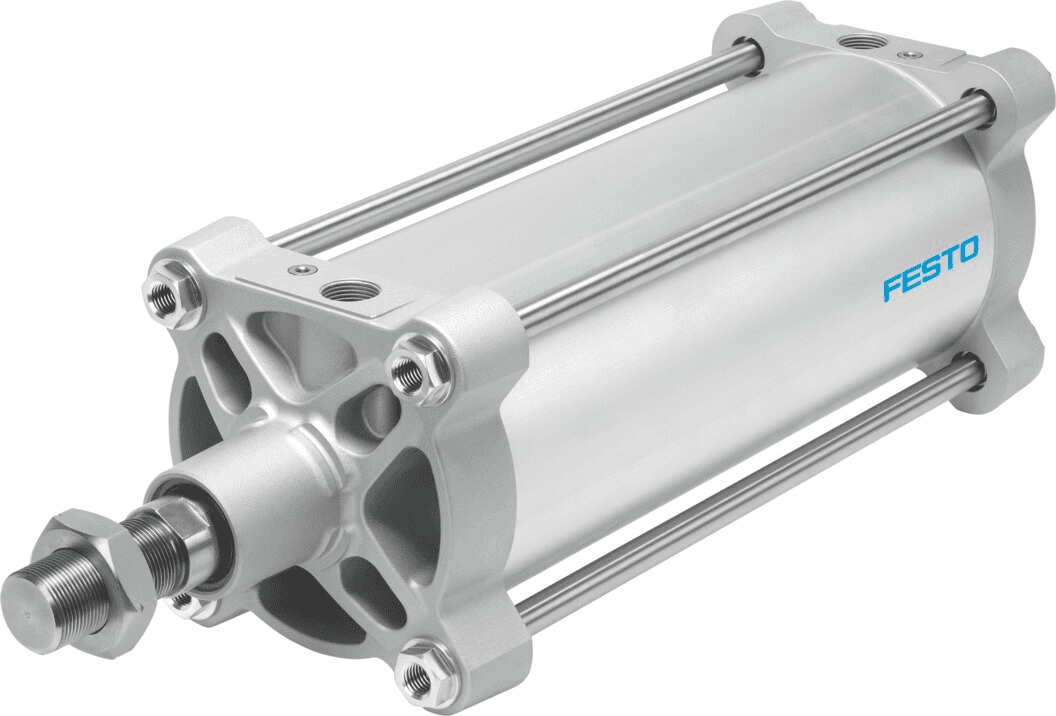

Festo 2390143 DSBG-200-100-PPVA-N3
The Festo 2390143 is an ISO 15552 standards based pneumatic tie rod cylinder. CMP Automate supplies the 2390143 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Description
ISO 15552 standards based pneumatic tie rod cylinder, double acting, piston diameter 200 mm, stroke 100 mm, piston rod thread M36x2 external , pneumatic cushioning adjustable at both ends PPV , pneumatic ports G3/4, operating pressure 0.06 1 MPa 0.6 10 bar , operating medium compressed air ISO 8573 1 2010 7 4 4 , ambient temperature 20 C to 80 C, CRC corrosion resistance class 2, basic weight 0 mm stroke 15.493 kg, product weight 17.953 kg.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
