Festo

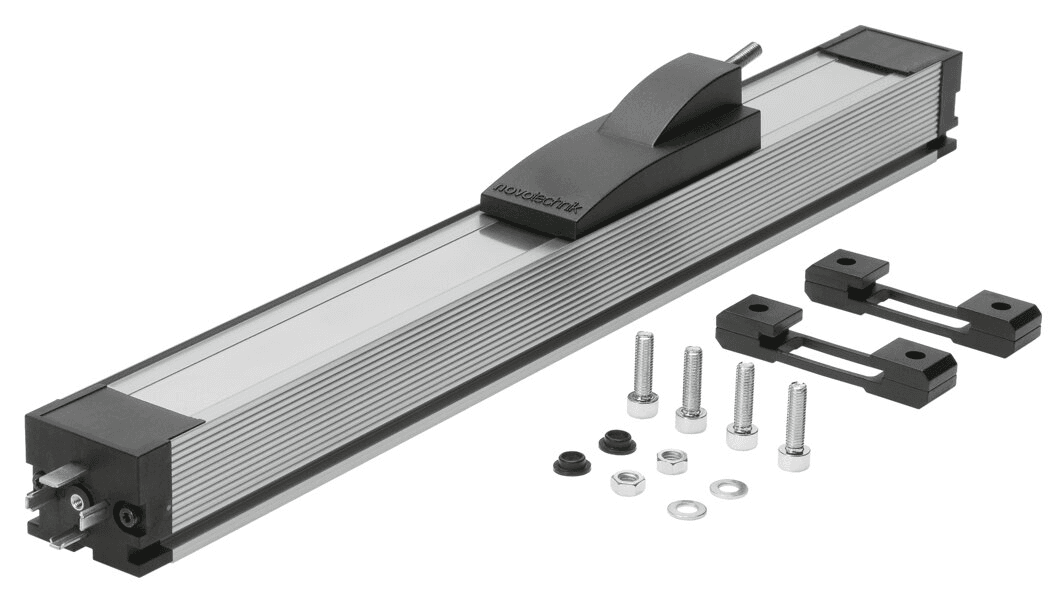

Festo 152628 MLO-POT-450-TLF
The Festo 152628 is a Displacement encoder linear potentiometer, part of the Festo General Automation range. It offers a 10 V DC supply, 1 A rated current and IP65 protection.
$821.90 incl. 5% VAT for UAE delivery
Prices exclude VAT. 5% VAT is added at checkout for UAE delivery.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 152628 MLO-POT-450-TLF
| Supply voltage | 10 V DC |
|---|---|
| Rated current | 1 A |
| Degree of protection | IP65 |
Description
Displacement encoder linear potentiometer , analog output stroke 450 mm displacement resolution 0.01 mm independent linearity 0.05 recommended wiper current 1 A maximum intermittent wiper current 10 mA nominal operating voltage 10 V DC max 42 V DC maximum travel speed 10 m/s maximum travel acceleration 200 m/s electrical connection 4 pin Type A DIN 43650 connector protection class IP65 housing anodized wrought aluminium sliding carriage die cast aluminium with polymer cover mounting optional.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
