Product image is representative; revision or series may vary. Contact us to request a specific version.
Eaton

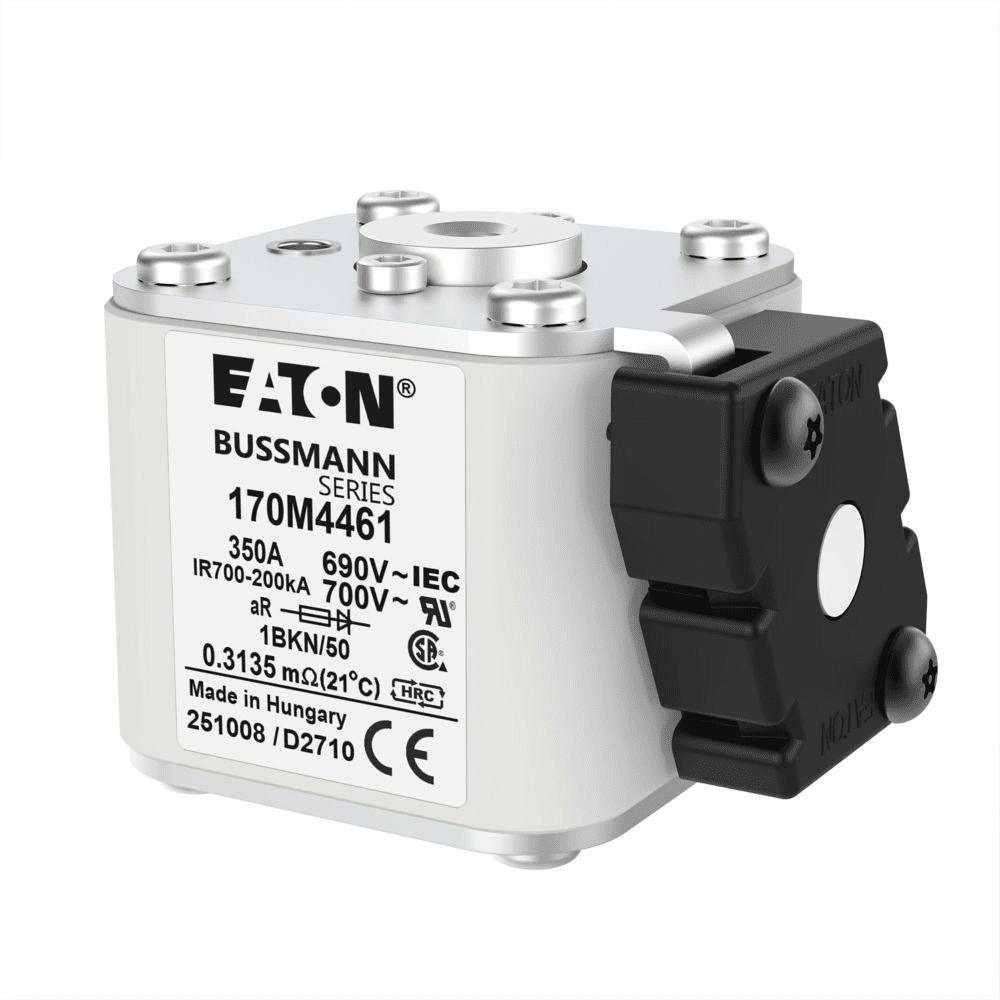

Eaton 170M4461
The Eaton 170M4461 is a High speed square body fuse, part of the Eaton Drives – Motors – Circuits Protection range. It offers 60 W rated power, 690 V rated and 350 A rated current.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 170M4461
| Rated current | 350 A |
|---|---|
| Rated voltage | 690 V |
| Rated power | 60 W |
Description
High speed square body fuse, Class aR semiconductor protection . Rated current 350 A. Rated voltage 690 V IEC / 700 V UL . Interrupt rating 200 kAIC. Clearing I2t 59000 at 660 V. Pre arc I2t 8500. Fuse indicator centre fuse status indicator. Fuse type flush end. Mounting requires holder / flush mounting. Typical applications semiconductor protection, DC common bus, DC drives, power converters/rectifiers. Watt losses 60 W.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
