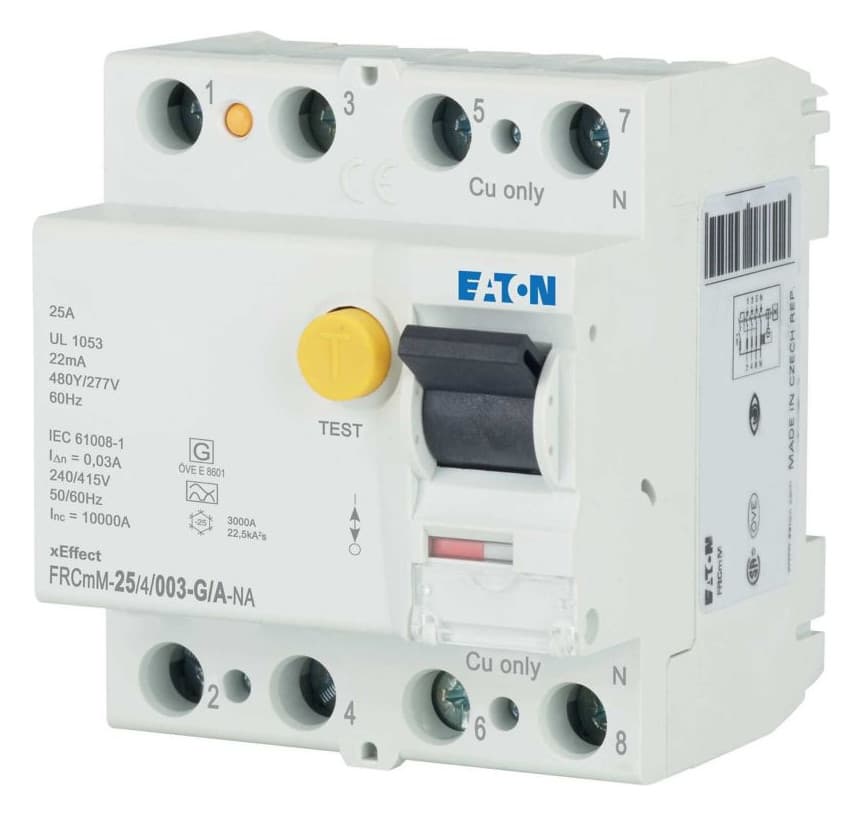

Eaton 167107 FRCMM-25/4/003-G/A-NA
The Eaton 167107 is a Residual current circuit breaker RCCB, part of the Eaton Drives – Motors – Circuits Protection range. It offers a 240/415 V AC supply, 25 A rated current, a 50 Hz supply frequency and 4 poles.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 167107 FRCMM-25/4/003-G/A-NA
| Supply voltage | 240/415 V AC |
|---|---|
| Rated current | 25 A |
| Degree of protection | IP20 |
| Mounting | DIN rail |
| Frequency | 50 Hz |
| Number of poles | 4 |
Description
Residual current circuit breaker RCCB , 4 pole, Rated current 25 A, Rated residual sensitivity 30 mA 0.03 A , Type G/A pulse current sensitive , Short time delayed tripping 10 ms 50 Hz 8 ms 60 Hz , Rated insulation voltage 440 V, Voltage rating 240/415 V AC UL 480Y/277 V , Short circuit strength 10 kA with back up fuse , Surge current capacity 3 kA, DIN rail mounting, IP20, Width 4 modules 70 mm , Terminal capacity solid 1.5 35 mm , Connectable conductor cross section multi wire 1.5 16 mm
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
